AUT Millennium Aquatic Centre Feature Facade

  • AUT Millennium Aquatic Centre Feature Facade 1 / 6
  • AUT Millennium Aquatic Centre Feature Facade 2 / 6
  • AUT Millennium Aquatic Centre Feature Facade 3 / 6
  • AUT Millennium Aquatic Centre Feature Facade 4 / 6
  • AUT Millennium Aquatic Centre Feature Facade 5 / 6
  • AUT Millennium Aquatic Centre Feature Facade 6 / 6

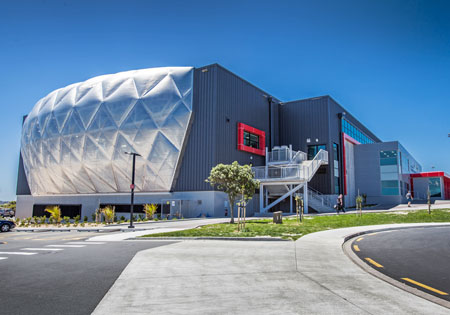

To create an massive decorative pipe façade with clear polythene inflated cladding for the outside of the new AUT Millennium Aquatic Centre.

Challenges:

This was one of the most challenging fabrication jobs we have undertaken. The structure was fabricated full size (at 30m x 14m x 5m high) and took up an entire fabrication bay at our HQ. It was then broken down into 8 very awkward truck loads for coating and transport to site.

Every intersection of pipes had 20mm strengthening plates inserted in both directions and were full strength butt-welded and tested.

Facts & figures:

There are over 300 strategically positioned fittings on the structure to carry the cladding system.

It needed over 350 metres of Ø150mm scheduled pipe and 50 full-strength plated connections.

It has over 50 internally bolted splice connections with access holes that were capped and sealed after assembly. It took over 1600 fabrication hours.



"Global Engineering was the structural steel subcontractor on the Auckland University Technical Services Relocation contract recently completed by Hawkins. They performed on time and were obliging with the small changes and minor adjustments that always seem to occur. Their staff were friendly, competent and easy to deal with and I look forward to working with them again.”

Allan Christie, Project/Maintenance Manager at Hawkins Construction
